POSTED MAY 8, 2006.
Revised Set Design
Millie Basic Set - May 8th Version
Description of major elements from DS to US.
DS Main Portal circles are light boxes - ray elements also if within budget.
DS Main Portal has chase rope on inside edge.
Six feet US from plaster line is a set of panels with portal mofit.
These panels are on a traveler track and have a black curtian that trails behind
for masking.Circles are light boxes- ray elements also if within budget. Chase rope on inside edge?
SL and SR city profile units can revolve to reveal hotel. Windows are light boxes. City side
is covered with black commando cloth - light boxes are cut out of black cover.
Edge of city profiles has 2x2 inch bead - painted.
Second Portal at Mid-stage. Inside edge of portal has chase rope. Circles are light boxes-
ray elements also if within budget.
US of second portal is set of city skyline panels on traveler track. Open and close as needed.
Just DS of curved top cyc panel is a black commando cover tall ground row. This ground row has
mini-clear christmas tree lights for the windows. Out side edge of cyc curved top has chase rope.
Circles are light boxes- ray elements also if within budget.

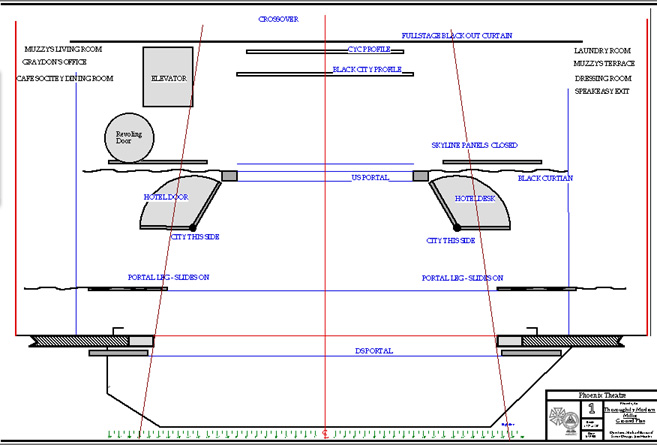

Millie Basic Set - May 8th Version - Ground Plan
